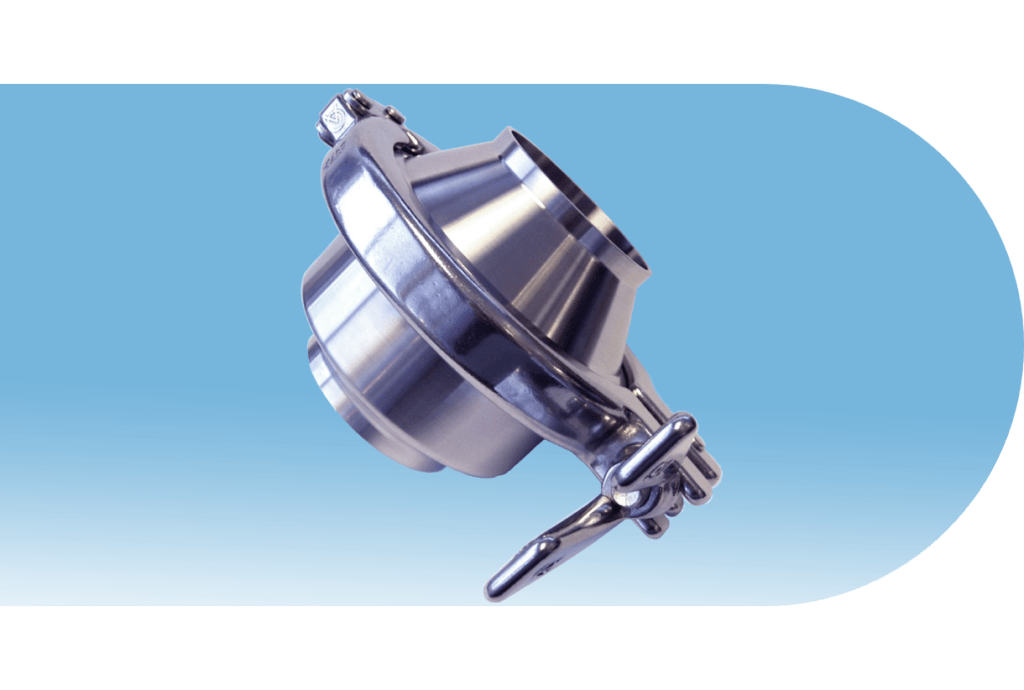

Diamond Non Return Valves
Your Diamond Valve is fully maintainable – for Spares Kit information simply download our Maintenance Instructions
The DPL hygienic Diamond Non-Return Valve is designed to prevent back-flow of product in the pipework system.
The valve is constructed to the highest specification, thus ensuring optimum levels of hygiene and cleanliness by nature of it’s design.
Stainless Steel product contact components are manufactured from 316 and 316L. Seals and elastomers carry FDA approval. All valve component parts are designed to enable thorough in-line cleaning, even in the most challenging of applications.
With options of surface finish, seal material and fitting type, the valve is suited to many industry sectors. These sectors include Food and Beverage, Pharmaceutical, Biomedical and Chemical.
Please call us to further discuss your requirements. We are confident that we have a valve designed to suit your application.
Weight (kg) includes clamp ferrules, dimensions in mm
ATEX approved version available for use in potentially explosive atmospheres.
Group 2, Category 2, Gas and dust compliant
- ATEX approval for use in hazardous areas. (Please see information below)
- Fully machined valve components offering excellent corrosion resistance and no porosity.
- Aseptic design ensures wide acceptance in world-wide pharmaceutical, food and beverage industries including biomedical applications e.g. WFI
- Clamp body design ensures minimal downtime when sterilising / dismantling.
- Wide selection of seal material and end fittings available, thus ensuring compatibility with your system.

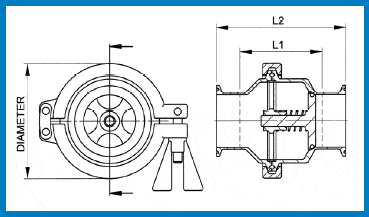

| Size | 0.5” | 0.75” | 1” | 1.5” | 2.0” | 2.5” | 3” | 4” |
| L1 Weld | 75 | 75 | 60 | 75 | 75 | 75 | 75 | 119 |
| L2 Clamp | 87 | 87 | 102 | 117 | 117 | 117 | 117 | 161 |
| L2 Male 1DF/RJT | NA | NA | 102 | 117 | 117 | 117 | 117 | 161 RJT 179 IDF |
| Diameter | 63 | 63 | 63 | 93 | 107 | 133 | 145 | 185 |
| Weight | 0.57 | 0.55 | 0.65 | 1.10 | 1.30 | 1.85 | 2.15 | 4.85 |

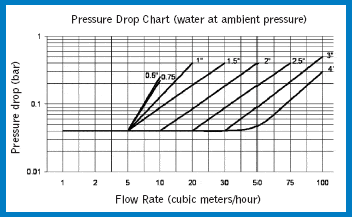

Technical Data
| Initial Opening Pressure: | 0.5 – 3psi |
| Fully Open Pressure: | 1 – 4 psi |
| Max Operating Pressure: | 150 psi (10 Bar) |
| Seal Material Options: | EPDM (standard), Nitrile, Silicone, Viton, FEP/PTFE |
| End Connection Options: | Clamp, RJT, IDF, ILC, DIN, SMS, Flange, Butt Weld |
| Internal Surface Finish: | 0.8um (standard) 0.5um and/or Electro-Polish. |
| Certification: | EN10204 3.1, ATEX, P.E.D 97/23/EC(SEP)
|
Working temperatures dependent upon choice of seal material, please consult DPL if in doubt
THE FINER DETAILS...
The DPL hygienic Diamond Non-Return Valve is designed to prevent back-flow of product in the pipework system.
The valve is constructed to the highest specification, thus ensuring optimum levels of hygiene and cleanliness by nature of it’s design.
Stainless Steel product contact components are manufactured from 316 and 316L. Seals and elastomers carry FDA approval. All valve component parts are designed to enable thorough in-line cleaning, even in the most challenging of applications.
With options of surface finish, seal material and fitting type, the valve is suited to many industry sectors. These sectors include Food and Beverage, Pharmaceutical, Biomedical and Chemical.
Please call us to further discuss your requirements. We are confident that we have a valve designed to suit your application.
Weight (kg) includes clamp ferrules, dimensions in mm
ATEX approved version available for use in potentially explosive atmospheres.
Group 2, Category 2, Gas and dust compliant
